Concept for SiC utilizing MOSFETs

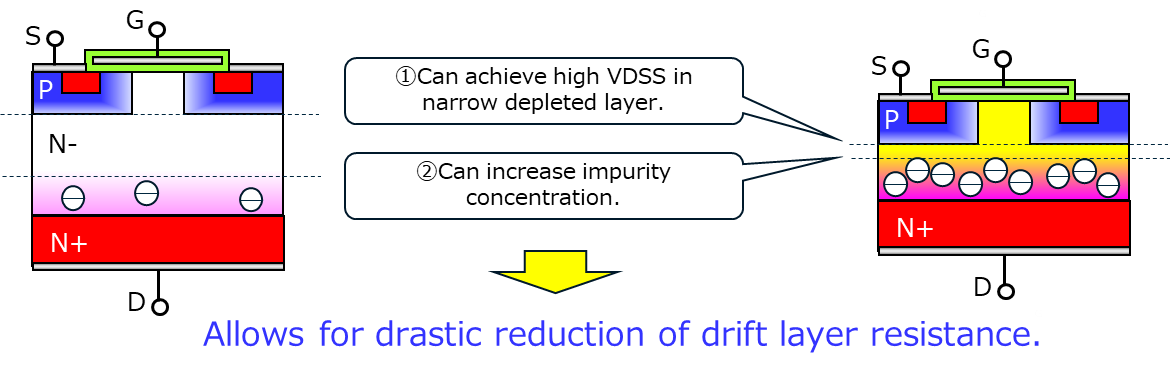

Concept for use of SiC as the wafer material for vertical MOSFETs*.
Si-MOSFETs
Wide Band Gap(SiC-MOSFETs)
*Vertical MOSFETs
MOSFETs type where electrodes are installed on the front and back of the chip to direct current flow vertically across the chip as shown in the figure. This is the standard structure for power MOSFETs and IGBTs.
Comparison of MOSFETs characteristics
Item | Symbol | Unit | MOSFETs | SJ-MOSFETs | SiC-MOSFETs |
---|---|---|---|---|---|
F15F60HP2 |
Company A |
Company B |
|||
Drain-Source voltage |
VDSS | V |
600 |
650 |
650 |
Drain current (DC) | ID |
A |
15 |
8 |
21 |
Drain current (Peak) |
IDP |
A |
60 |
49 |
52 |
Total power dissipation |
PT | W |
95 |
30 |
103* |
ON resistance |
R(DS)ON | Ω |
0.49(max.) |
0.19(max.) |
0.156(max.) |
Input capacitance |
Ciss |
pF |
1750 |
1150 |
460 |
Single avalanche energy |
EAS | mJ |
80 |
57 |
- |
Drain-source diode di/dt strength |
di/dt | A/μs |
350 |
55 |
- |
Ron×Ciss (figure of merit) |
- | Ω・pF |
857.5 |
218.5 |
71.76 |
*Company B’s product uses a large package so total power dissipation is also large.
