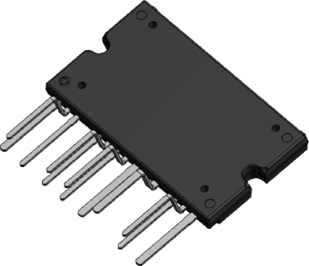

SiC / GaN Power modules

MG059/MG065 (Tentative name)

[under development]

  • Bridgeless PFC circuits SiC power modules
  • Totem pole type bridgeless PFC circuits GaN-HEMT power modules
  • SIP type optimal for 1U power supplies.
  • Insulated / high heat dissipation / actual mounting height 30mm (reference values)
  • Secures a creepage distance of 3.3mm

*  The values listed in this section are estimated values from testing stages and are not guaranteed values.

Contact information


Full bridge
SiC power modules
MG059 (Tentative name)
Type VDSS ID RDS(on) Typ.
SiC MOS 650V 100A 15mΩ
650V 70A 30mΩ
Interleave PFC
SiC power modules
MG059 (Tentative name)
Type VRRM IF Typ. VF
SiC SBD 650V 50A 1.5V
Totem pole type bridgeless PFC
GaN-HEMT power modules
MG065 (Tentative name)
Type VDSS ID RDS(on) Typ.
E-mode
GaN-HEMT		 650V 30A 50mΩ
Type VRRM IF Typ. VF trr
FRD 600V 20A 1.1V 130ns


External Dimensions/Terminal layout

* Pin assignments are for full bridge type
