LLC Current Resonant Mode Controller ICs

▼MCZ5207SG/MCZ5208SG/MCZ5211ST/MCZ5216ST
Equipped with Shindengen's proprietary asymmetric control
to improve light load efficiency


■It is possible to achieve high efficiency through all load ranges
■It is possible to downsize transformers, thus achieves miniaturization of the entire power supply
■Built-in protection functions allow for safe use

Spec.

Various protection functions
Includes multiple built-in protection functions to allow for safe use including capacitive mode protection, input monitoring, pulse-by-pulse overcurrent protection, and more.
Achieve high efficiency through all load ranges
Including Shindengen’s proprietary asymmetric control makes it possible to improve efficiency during light loads which LLC current resonance circuits do not handle well, making it possible to achieve high efficiency through all load ranges.

Achieves downsize transformers and miniaturization of the entire power supply
Compatible with control up to a maximum of 500kHz (under normal operation), which makes it possible to downsize transformers, thus achieves miniaturization of the entire power supply.

Reduced excitation current and improved light load efficiency

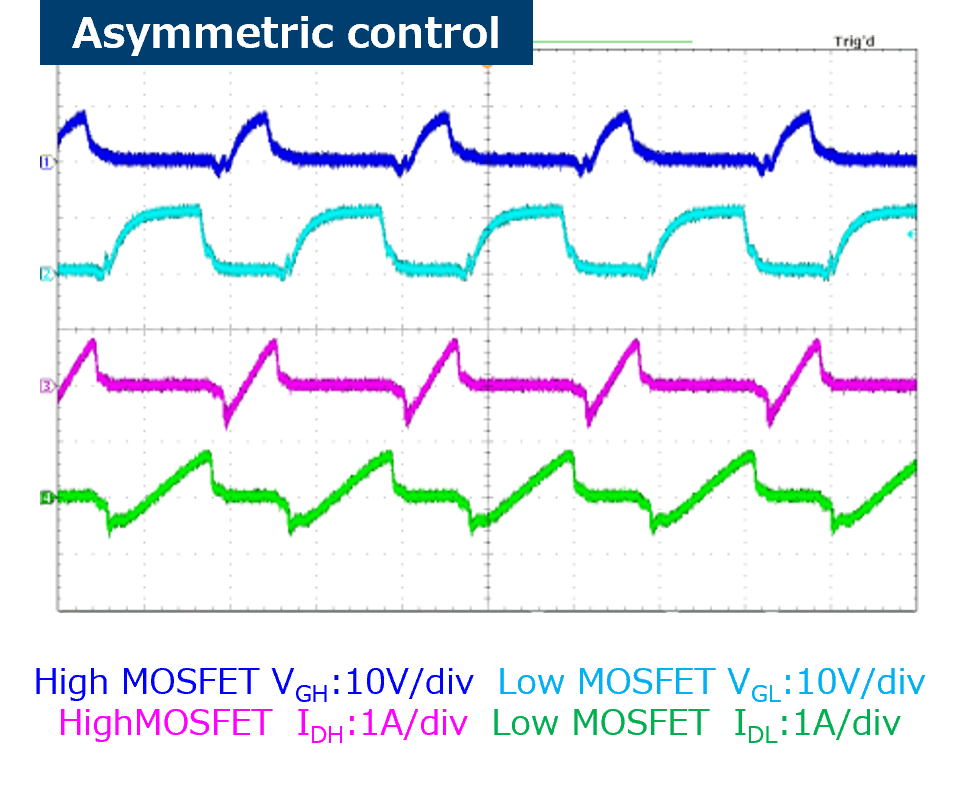

Realizes asymmetric control which doubles low side ON width, which makes it possible to work towards reducing excitation current thereby improving efficiency during light loads. Asymmetric control improves MOSFET dissipation by approximately 65% (at 10W)

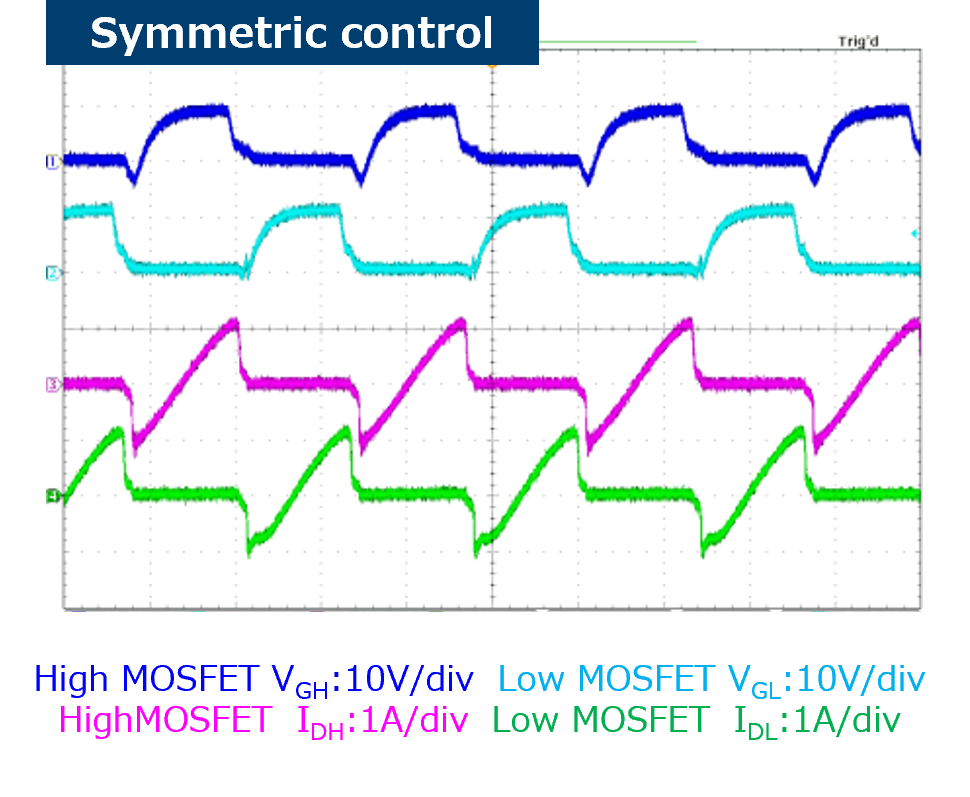

Symmetric control Asymmetric control
MOSFET loss※1 0.48 W 0.47 W
200W power supply example※2
※1 Ron=1Ω
※2 Vin=390 V Po=10W

Product Specifications
　　　　　　　　　　 MCZ5207SG MCZ5208SG MCZ5211ST MCZ5216ST
Package SOP16 SOP18
HV Startup × 〇
X-cap Discharge function × 〇
Dead time correction function Frequency tracking
Burst mode function 〇
Asymmetric control function 〇
Capacitive mode protection function 〇
Pulse by pulse OCP 〇
Low input voltage protection(Vsen) 〇
Operating frequenc (Rough indication) ~300kHz ~500kHz
