CB modules
▼MG001AK/MG001AL
Effective for high heat dissipation and downsizing,
Converter + brake power modules
▼MG030A/MG030J/MG030X
Package for high withstand voltage
Converter + brake power modules
Effective for high heat dissipation and downsizing,
Converter + brake power modules
MG001AK/MG001AL
■Module which incorporates a three phase bridge rectifier and regenerative brake
■Effective for high heat dissipation and downsizing
■No insulating required. (2.5kV/UL1557 certified)

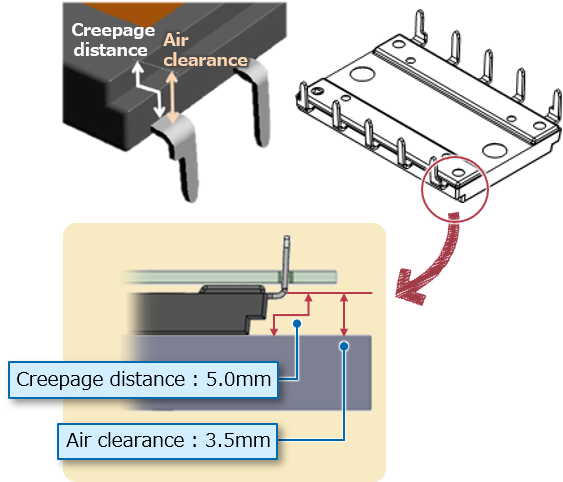

■Secures a creepage distance of 3mm or more
■Effective for high heat dissipation and downsizing
■No insulating required. (2.5kV/UL1557 certified)
■Secures a creepage distance of 3mm or more
Secures a creepage distance of 3mm or more
Block Diagram
External Dimensions
Product Specifications
| Part Name | Converter section | Brake section | ||||
|---|---|---|---|---|---|---|
| IGBT | Diode | |||||
| VRM [V] | IO [A] | VCES [V] | IC [A] | VRM [V] | IO [A] | |
| MG001AK028060A | 600 | 20 | 600 | 28 | 600 | 3 |
| MG001AL030060A | 600 | 30 | 600 | 30 | 600 | 3 |
Package for high withstand voltage
Converter + brake power modules
MG030A/MG030J/MG030X
[ under development ]
■Module which incorporates a three phase bridge rectifier and regenerative brake.
■Effective for high heat dissipation and downsizing

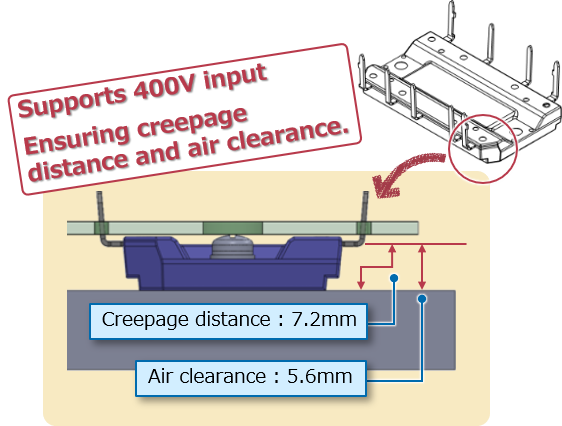

■Secures a air clearance of 5.6mm. Secures a creepage distance of 7.2mm
■Effective for high heat dissipation and downsizing
■Secures a air clearance of 5.6mm. Secures a creepage distance of 7.2mm
Secures a creepage distance of 6.4mm or more
Block Diagram
External Dimensions
Product Specifications
| Part Name | Converter section | Brake section | ||||
|---|---|---|---|---|---|---|
| IGBT | Diode | |||||
| VRM [V] | IO [A] | VCES [V] | IC [A] | VRM [V] | IO [A] | |
| MG030A | 1600 | 50 | 1200 | 15 | 1200 | 15 |
| MG030J | 800 | 50 | 600 | 30 | 600 | 30 |
| MG030X | 800 | 75 | 600 | 69 | 600 | 30 |
