Shindengen Electric Manufacturing has launched its next-generation power MOSFET “TOLL Package Series” for automotive applications.
With the rapid spread of electrified mobility in recent years, there is a demand for components that can withstand voltages of 100 to 200V and handle high currents, in line with the installation of high-voltage batteries. In addition, in order to increase the flexibility of the design and reduce the weight of the mobility, it is important to downsize the components installed.
In order to meet these needs, we are releasing the “TOLL Package Series” of 5th generation power MOSFETs that comply with the AEC-Q101 automotive reliability standard.
This product has reduced the mounting area by approximately 25% compared to previous products*1 by adopting a new package. In addition, by adopting next-generation chips with a shielded gate structure, the rated current has been increased to 232A, which is approximately 180% of conventional products*2, achieving both compactness and high current.
Furthermore, the Ciss/Crss characteristic is improved by approximately 44% compared to conventional products*2, significantly reducing the risk of self turn-on.
We are currently developing 200V-rated products, and we will continue to expand our lineup of high-current power MOSFETs that can be used in vehicles to meet market needs.
※1 Compared to「FZ-7pin(TO-263-7pin)」
※2 Compared to「P126FP10SNK」
■ Features

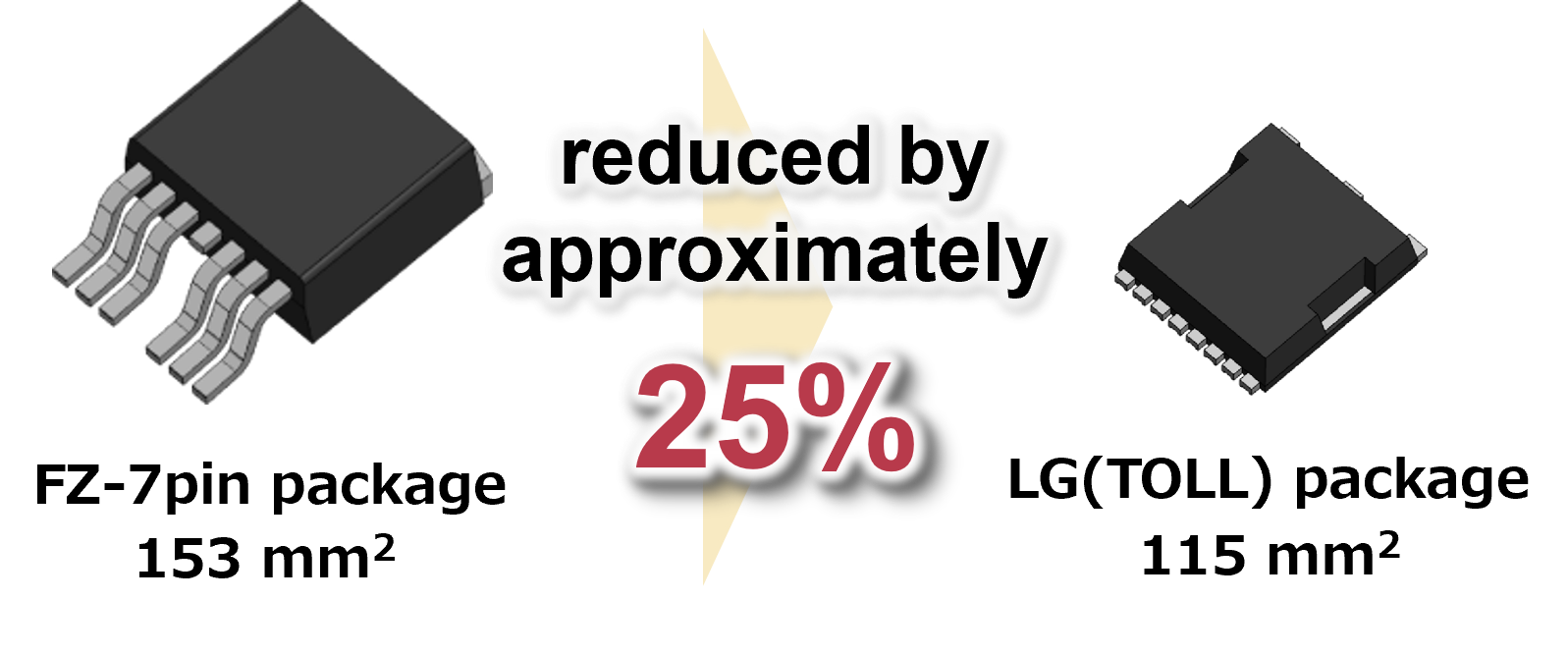

1. Reduced the mounting area by approximately 25% 【Fig.1】
This product has reduced the mounting area by approximately 25% compared to previous products*1 by adopting a new package.

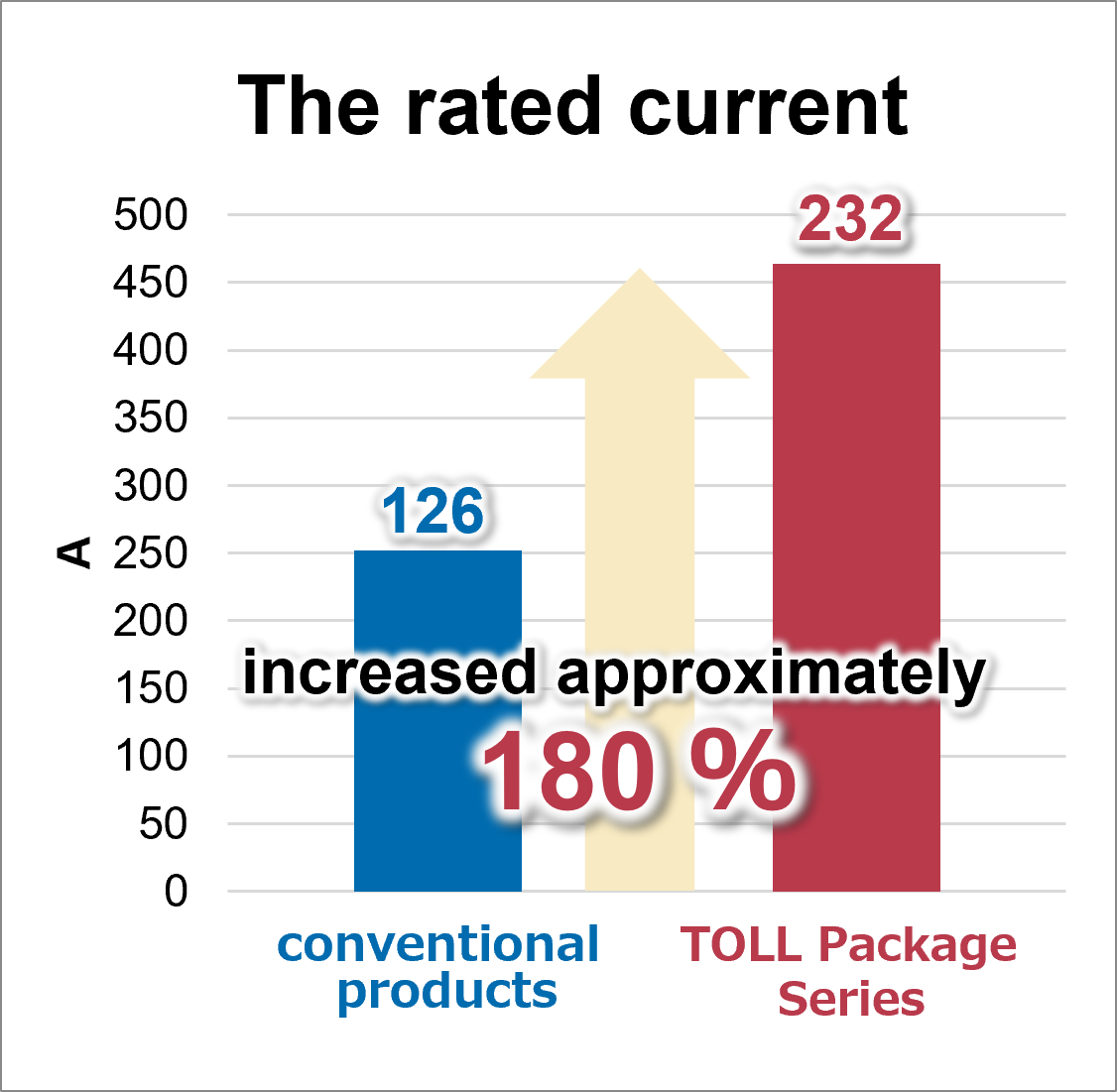

2. The rated current has been increased to 232A【Fig.2】
by adopting next-generation chips with a shielded gate structure, the rated current has been increased to 232A, which is approximately 180% of conventional products*2.

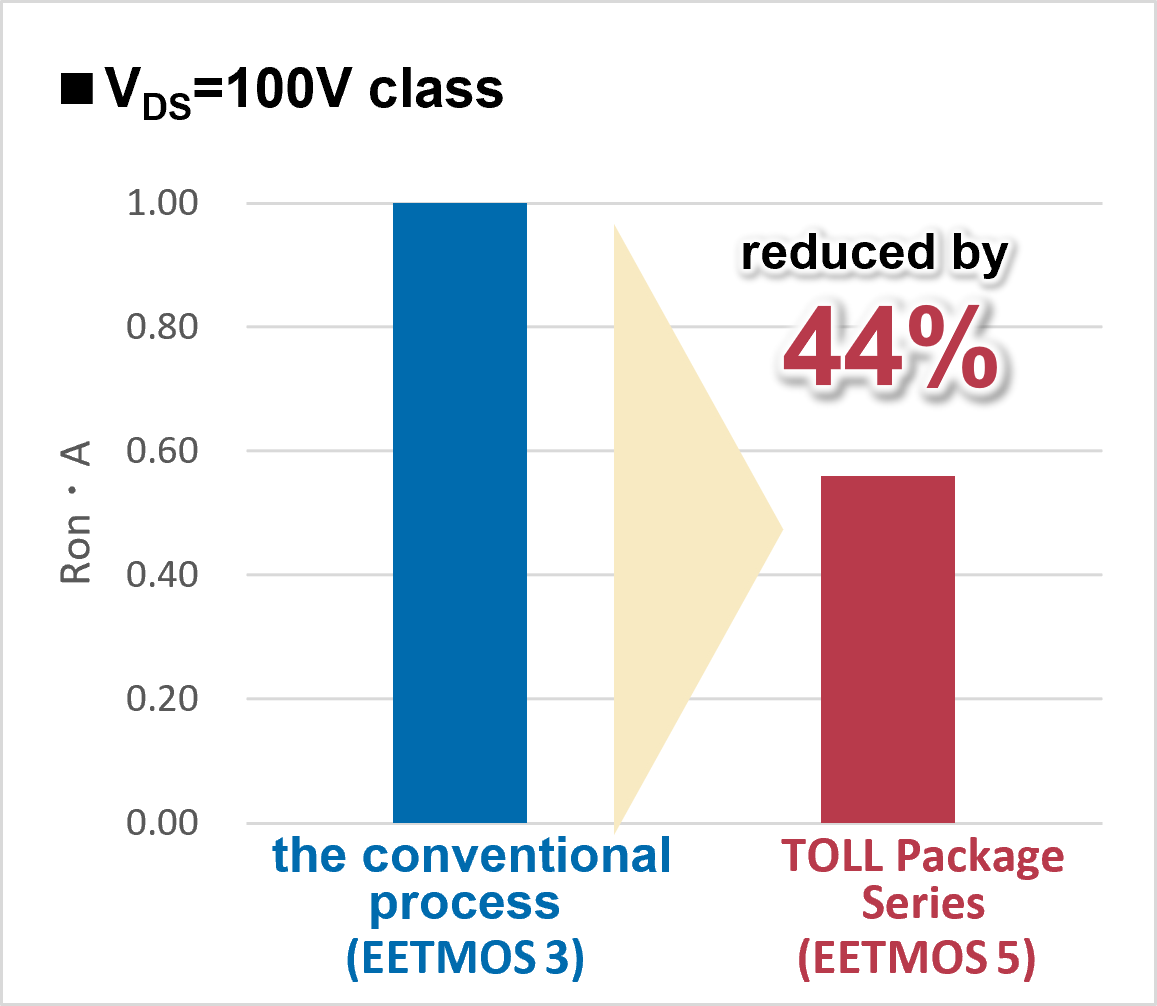

3. Significantly reducing the risk of self turn-on 【Fig.3】
The Ciss/Crss characteristic is improved by approximately 44% compared to conventional products, significantly reducing the risk of self turn-on.

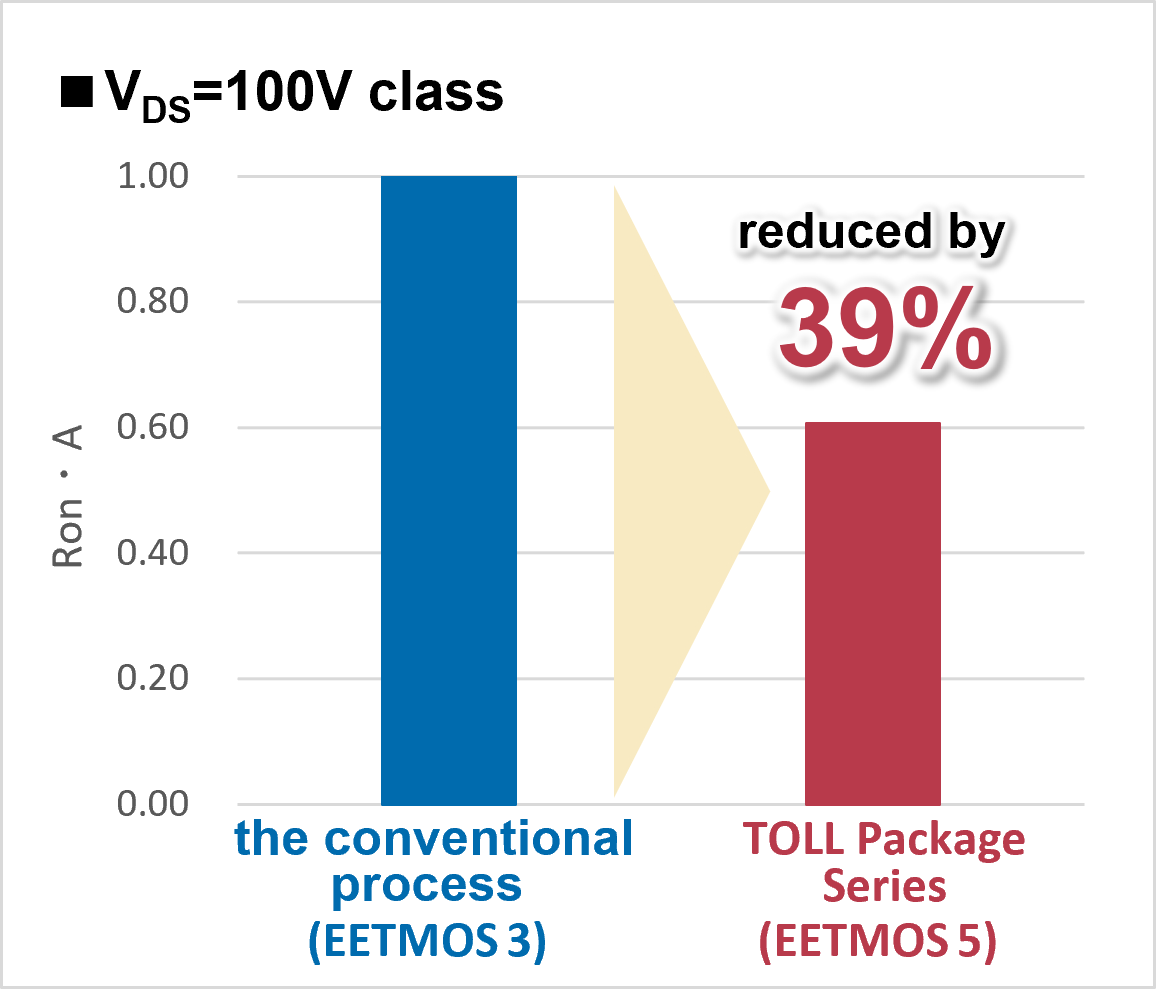

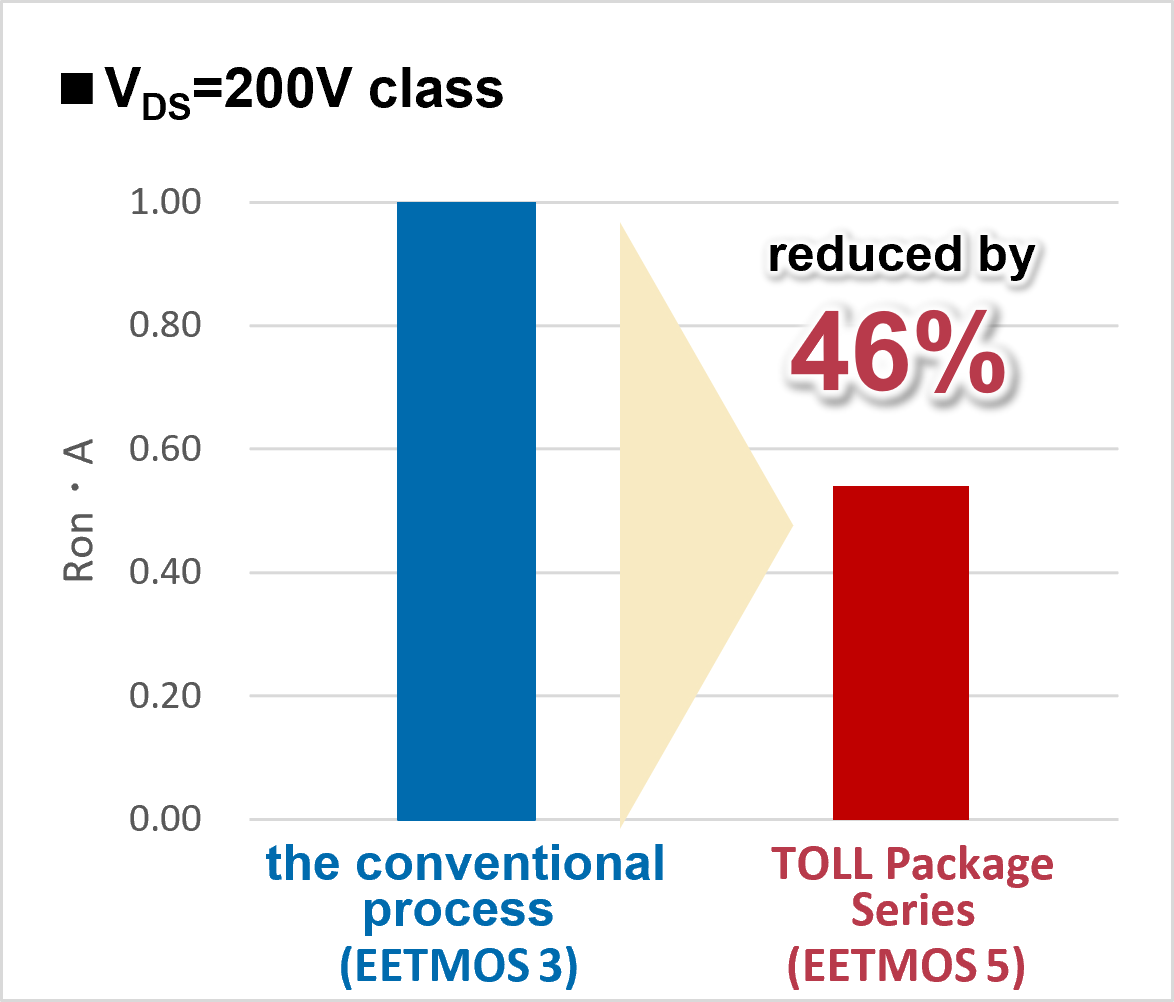

3. Low Ron、low noise product【Fig.4】
Compared to the conventional process, Ron·A was reduced by 39% in the VDS=100V class and by 46% in the VDS=200V class.
4. Other features
・Wettable Flank structure
・Tch=175℃
※1 Compared to「FZ-7pin(TO-263-7pin)」
※2 Compared to「P126FP10SNK」
|
Fig.1 Package size comparison |
Fig.2 Rating current comparison |
 |
 |
|
Fig.3 Ciss/Crss comparison |
Fig.4 Ron comparison |
 |
  |
■ Typical Applications
・Large-capacity motor drive
・On-board ECU
・Reverse contact, reverse flow prevention, etc.
■ Product Specifications
【For vehicle applications】| Part Name | VDS(min) [V] | ID(max) [A] | VTH(typ) [V] | Ron [mΩ] VGS=10V |
Ciss VDS=50V (typ) [pF] |
Coss VDS=50V (typ) [pF] |
Crss VDS=50V (typ) [pF] |
|
|---|---|---|---|---|---|---|---|---|
| (typ) | (max) | |||||||
| P130LG10GNK | 100 | 130 | 3 | 4 | 5 | 3500 | 600 | 26 |
| P168LG10GNK | 100 | 168 | 3 | 2.5 | 3.1 | 6035 | 1100 | 31 |
| P200LG10GNK | 100 | 200 | 3 | 2.2 | 2.7 | 6954 | 1218 | 23 |
| P232LG10GNK | 100 | 232 | 3 | 1.83 | 2.2 | 8140 | 1425 | 27 |
| Part Name | VDS(min) [V] | ID(max) [A] | VTH(typ) [V] | Ron [mΩ] VGS=10V |
Ciss VDS=50V (typ) [pF] |
Coss VDS=50V (typ) [pF] |
Crss VDS=50V (typ) [pF] |
|
|---|---|---|---|---|---|---|---|---|
| (typ) | (max) | |||||||
| P130LG10GN | 100 | 130 | 3 | 4 | 5 | 3500 | 600 | 26 |
| P168LG10GN | 100 | 168 | 3 | 2.5 | 3.1 | 6035 | 1100 | 31 |
| P200LG10GN | 100 | 200 | 3 | 2.2 | 2.7 | 6954 | 1218 | 23 |
| P232LG10GN | 100 | 232 | 3 | 1.83 | 2.2 | 8140 | 1425 | 27 |
■ External Dimensions Diagram
■ Equivalent Circuit
■ Related Products Information（Under development）
【For vehicle applications / 200V withstand voltage】5th generation MOSFET(EETMOS 5)| Part Name | VDS(min) [V] | ID(max) [A] | VTH(typ) [V] | Ron [mΩ] VGS=10V |
Ciss VDS=50V (typ) [pF] |
Coss VDS=50V (typ) [pF] |
Crss VDS=50V (typ) [pF] |
|
|---|---|---|---|---|---|---|---|---|
| (typ) | (max) | |||||||
| P90LG20GNK | 200 | 90 | 3 | 10.3 | 12.9 | 4385 | 348 | 14 |
| P104LG20GNK | 200 | 104 | 3 | 8.7 | 10.9 | 5248 | 416 | 17 |
| P120LG20GNK | 200 | 120 | 3 | 7.5 | 9.4 | 6619 | 451 | 19 |
| Part Name | VDS(min) [V] | ID(max) [A] | VTH(typ) [V] | Ron [mΩ] VGS=10V |
Ciss VDS=50V (typ) [pF] |
Coss VDS=50V (typ) [pF] |
Crss VDS=50V (typ) [pF] |
|
|---|---|---|---|---|---|---|---|---|
| (typ) | (max) | |||||||
| P160LG10RNK | 100 | 160 | 3 | 2.7 | 3.4 | 4845 | 1184 | 22 |
| P200LG10RNK | 100 | 200 | 3 | 2.1 | 2.7 | 5866 | 1433 | 26 |
| P236LG10RNK | 100 | 236 | 3 | 1.74 | 2.2 | 7387 | 1805 | 33 |
| P260LG10RNK | 100 | 260 | 3 | 1.58 | 1.98 | 8311 | 2030 | 37 |
| P300LG10RNK | 100 | 300 | 3 | 1.34 | 1.68 | 9472 | 2430 | 44 |
