- Launched Schottky barrier diodes with 99% leakage current reduction. ～Contributing to the reduction of power loss and miniaturization of automotive ECUs～
New Product
Launched Schottky barrier diodes with 99% leakage current reduction.
～Contributing to the reduction of power loss and miniaturization of automotive ECUs～
Nov. 6, 2024

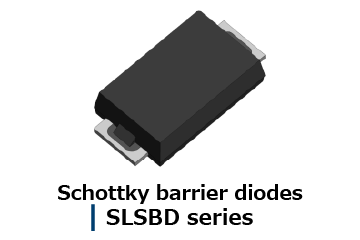

Shindengen Electric Manufacturing has launched the SLSBD series of Schottky barrier diodes for automotive applications.
In recent years, the ECUs of environmentally-friendly vehicles (xEVs), which are rapidly becoming more popular, are equipped with a large number of Schottky barrier diodes (hereinafter referred to as SBDs). However, in environments with high operating temperatures such as automotive ECUs, SBDs are prone to thermal runaway due to leakage current, which hinders product miniaturization and lower losses.
In addition, in automotive products, where noise regulations are strict, SBDs mounted on ECUs are also required to be low-noise.
To meet these needs, Shindengen Electric Manufacturing has expanded its SLSBD series lineup.
This product reduces leakage current by approximately 99%※1 compared to our conventional products and suppresses thermal runaway, contributing to lower loss and miniaturization of automotive ECUs.
Furthermore, IRP and VRP are reduced by 20%※2 and 40%※2, respectively, to meet the need for low noise.
※1 Comparison with the SBD S-series
※2 Comparison of the SLSBD-series SG20TC15M and the 200V fast recovery diode SG20LC20USM
■ Features
1. Reduces leakage current by approximately 99%【Fig.1】
Compared to our conventional products, leakage current has been reduced by approximately 99%※1, which helps to prevent thermal runaway.
2. Soft recovery characteristics【Fig.2】
Contributes to lower noise by reducing IRP by 20%※2 and VRP by 40%※2 compared to our conventional products.
3. Other features
・Tj＝175゜C
・5A rating with a CE package
※1 Comparison with the SBD S-series
※2 Comparison of the SLSBD-series SG20TC15M and the 200V fast recovery diode SG20LC20USM
|
Fig.1 Reduces leakage current by approximately 99% |
Fig.2 Soft recovery characteristics |
 |
 |
■ Typical Applications
ECU protective circuits for vehicle applications
Power supply for controlling industrial equipment, etc.
■ Equivalent Circuit
■ Specifications
| Products | VRRM［V］ | IF(AV)［A］ | IFSM［A］ | Tj［°C］ | VF(max)［V］ | IR（max）［uA］ | Ct（typ）［pF］ | for vehicle applications |
|---|---|---|---|---|---|---|---|---|
NEW D3CE4R5ST |
45 | 3 | 90 | -55 to 175 | 0.74 | 8 | 98 | ○ |
NEW D3CE6ST |
60 | 3 | 90 | -55 to 175 | 0.78 | 8 | 82 | ○ |
NEW D3CE10ST |
100 | 3 | 80 | -55 to 175 | 0.86 | 8 | 60 | ○ |
NEW D3CE12ST |
120 | 3 | 80 | -55 to 175 | 0.87 | 8 | 56 | ○ |
| 150 | 3 | 80 | -55 to 175 | 0.88 | 8 | 52 | ○ | |
NEW D5CE4R5ST |
45 | 5 | 100 | -55 to 175 | 0.74 | 15 | 189 | ○ |
NEW D5CE6ST |
60 | 5 | 100 | -55 to 175 | 0.78 | 15 | 149 | ○ |
NEW D5CE10ST |
100 | 5 | 90 | -55 to 175 | 0.86 | 15 | 106 | ○ |
NEW D5CE12ST |
120 | 5 | 90 | -55 to 175 | 0.87 | 15 | 102 | ○ |
NEW D5CE15ST |
150 | 5 | 90 | -55 to 175 | 0.88 | 15 | 92 | ○ |
