- Announcing the launch of TVS diodes which reduce package size by 62.5% ～Contributes to downsizing of ECU protective circuits for vehicle applications～
New Product
Announcing the launch of TVS diodes which reduce package size by 62.5%
～Contributes to downsizing of ECU protective circuits for vehicle applications～
Aug. 27, 2024

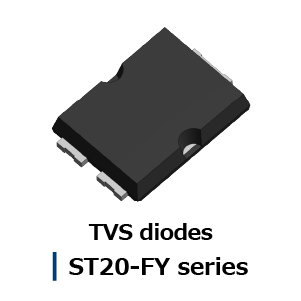

Shindengen Electric Manufacturing is releasing the ST20-FY series TVS diodes for in-vehicle equipment.
In recent years, environmentally friendly vehicles, which are rapidly becoming more popular, are equipped with a large number of ECUs, and the space limitations of each component are becoming more pronounced. In addition, as ECUs continue to increase in functionality and complexity, there is a need for more robust protection against negative surges that may cause malfunctions.
For these reasons, TVS diodes used for negative surge protection must be compact and have a high negative surge guarantee.
To meet these needs, Shindengen Electric Manufacturing has launched the ST20-FY series TVS diodes. This product reduces package size by 62.5% compared with conventional products※1 and improves guaranteed negative surge protection by 20% compared with equivalent products of other companies, contributing to downsizing and improving safety of devices.
The wide range of withstand voltages available in the product lineup enables the selection of a product suitable for the corresponding standard.
※１Comparison with "2F package"
■ Features

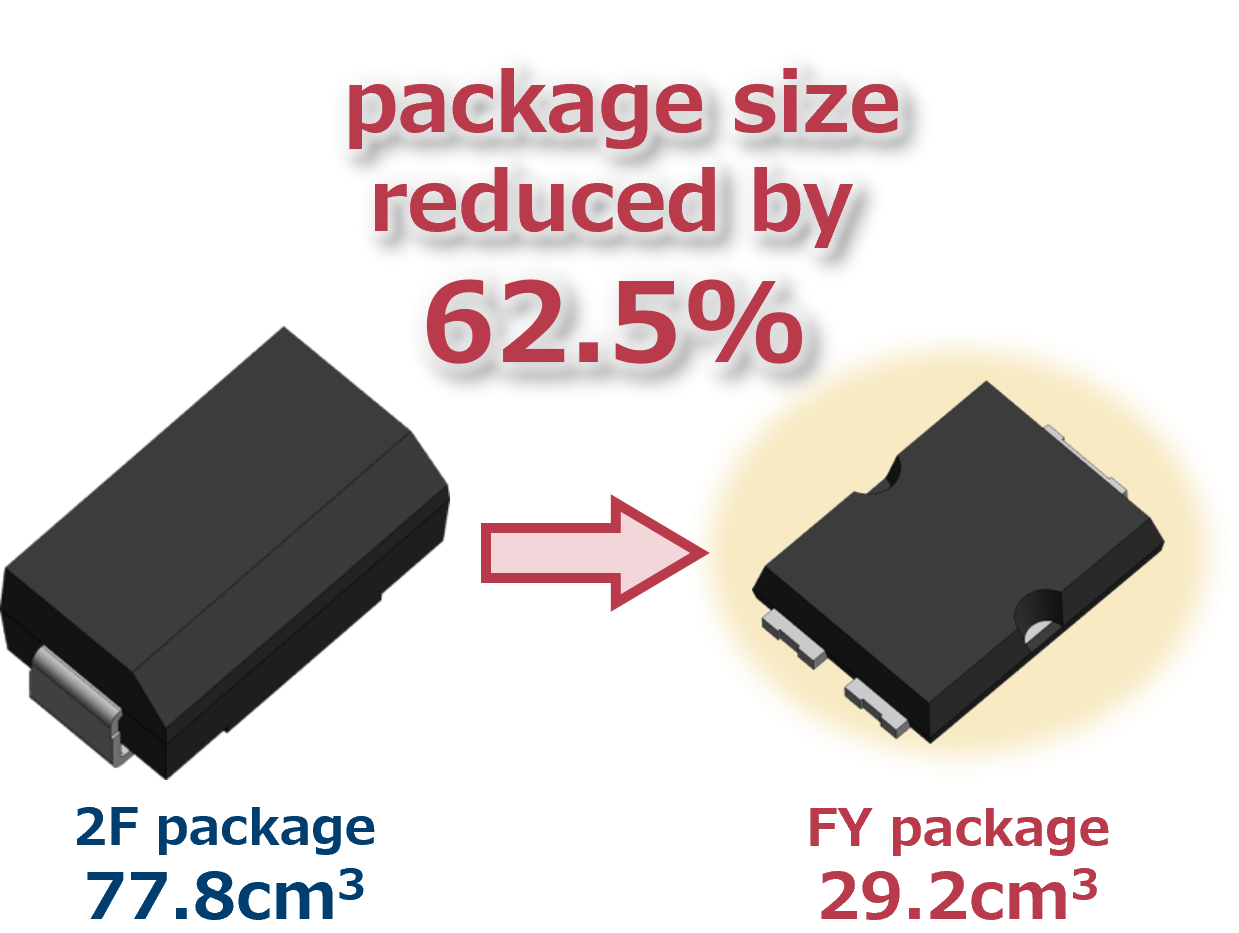

1. The package size is reduced by about 62.5%【Fig.1】
Package size reduced 62.5% compared to the conventional equivalent competitor products, contributing to product downsizing.

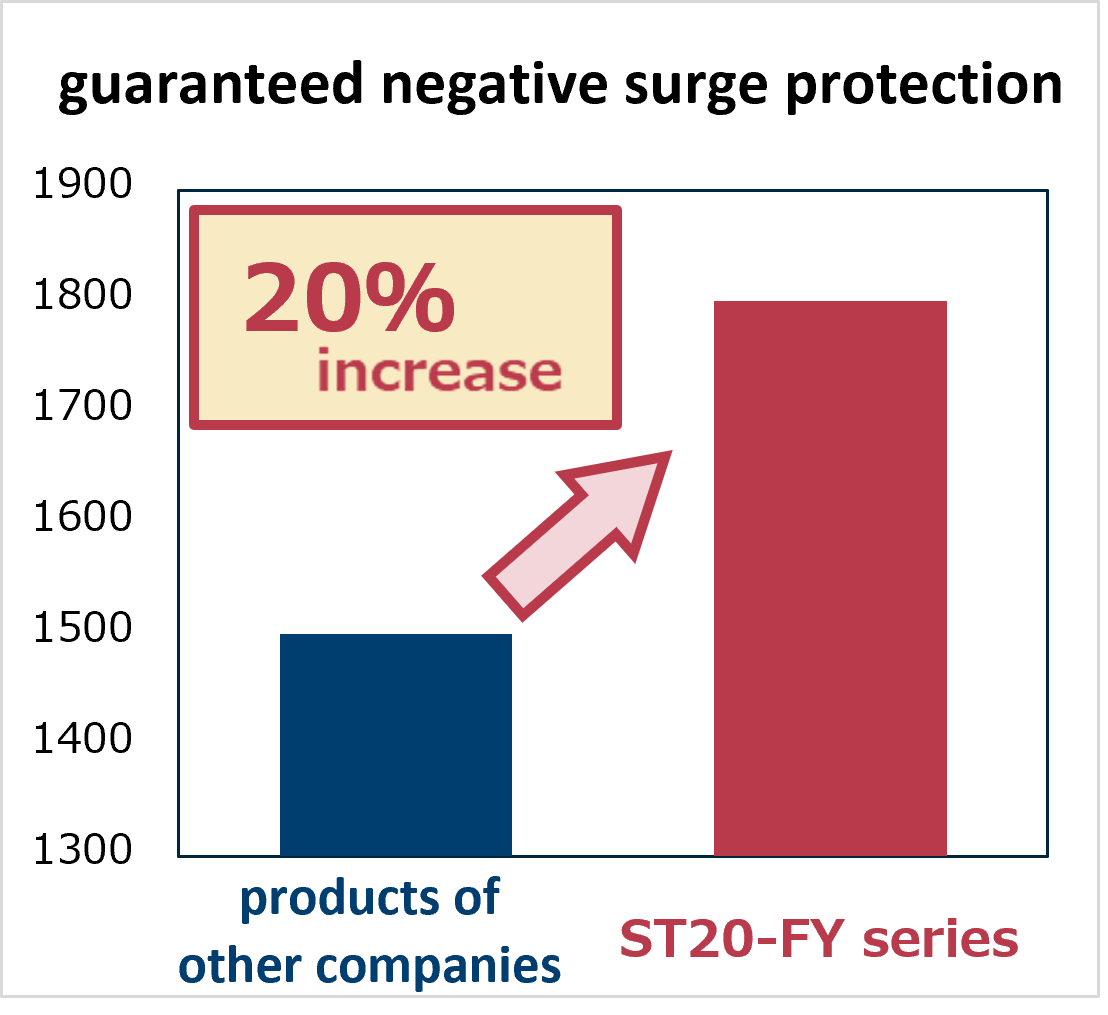

2. 20% increase in guaranteed negative surge protection【Fig.2】
Contributes to equipment safety by improving the guaranteed negative surge protection by 20% compared with equivalent products of other companies.
3. Wide withstand voltage lineup available
You can select products suited to required standards from a wide range of 18V to 39V withstand voltage
4. AEC-Q101compliance
|
Fig.1 The package size is reduced by about 62.5% |
Fig.2 20% increase in guaranteed negative surge protection |
 |
 |
■ Typical Applications
・vehicle application ECUs
■ External Dimensions

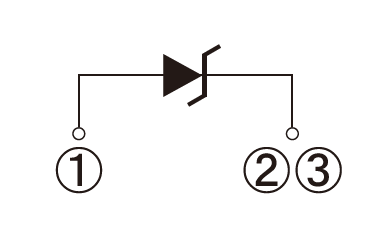

■ Equivalent Circuit
■ Product Specifications
| Products | Absolute Maximum Ratings (Tc=25℃) | Electrical Characteristics (Tc=25℃) | ||||||
|---|---|---|---|---|---|---|---|---|
| Tstg [°C] | Tj [°C] | PRSM [W] | IRSM [A] | VR(DC) [V] | VBR [V] | IRMax. [μA] (VR=VR(DC)) |
||
| Min. | Max. | |||||||
| ST20-18FY | -55～175 | -55～175 | 1800 | 57 | 16 | 17.2 | 19.1 | 5 |
| ST20-27FY | -55～175 | -55～175 | 1800 | 45 | 23 | 25.0 | 29.0 | 5 |
| ST20-30FY | -55～175 | -55～175 | 1800 | 41 | 24 | 28.0 | 32.0 | 5 |
| ST20-33FY | -55～175 | -55～175 | 1800 | 38 | 25 | 31.0 | 35.0 | 5 |
| ST20-36FY | -55～175 | -55～175 | 1800 | 35 | 27 | 34.0 | 38.0 | 5 |
| ST20-39FY | -55～175 | -55～175 | 1800 | 30 | 30 | 37.0 | 41.0 | 5 |
■ Factory Location
Akita Shindengen, Co., Ltd. etc.
■ Availability
August 2024
■ Contact information
