Announcing the launch of three phase bridge diode modules which use thin packages
～Contributes to downsizing and increased reliability for industrial devices～

Apr. 24, 2024

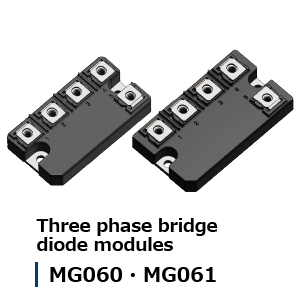

Shindengen Electric Manufacturing Co., Ltd. has launched the MG060 and MG061 three phase bridge diode modules for industrial equipment.

Large numbers of industrial robots have been introduced at manufacturing sites in recent years in order to optimize workforces and improve production efficiency, and there has been increased demand for devices which are both highly functional and can provide long-term stable operation. This is in turn has resulted in demand for three phase bridge diode module products which are smaller and more reliable for use in power supply units.

Shindengen Electric Manufacturing Co., Ltd. has launched the MG060 and MG061 three phase bridge diode modules to satisfy these needs. These products feature optimized internal structures, including revised clip connection technologies. The products are also equipped with highly reliable, Shindengen-produced large chips to contribute to downsizing, larger current capacity, and higher reliability for industrial equipment.
In addition, these products utilize ceramic boards to achieve high insulation performance and high heat dissipation designs, eliminating the need for additional insulation and making it possible to reduce both the quantity of materials and number of process hours required in order to better satisfy demand for higher voltage capacity devices.

■ Features

    • Utilizes a thin package【Fig.1】
      Utilizes thin 17mm packages which feature an approximately 43% height reduction compared to similar products from competing companies to better contribute to downsizing
    • Low thermal resistance【Fig.2】
      Use of large chips and ceramic boards reduces thermal resistance by approximately 65% compared to Shindengen conventional products
    • Improved resistance against surge current
      Achieves higher IFSM tolerance compared to similar products from competing companies
Part Name Similar products from competing companies
800V Specifications

MG060 / 061series

800V Specifications
75A Specifications 600A 1050A
100A Specifications 1000A 1200A
150A Specifications 1200A 1700A
200A Specifications 2000A 2050A
    • Utilizes high insulation capacity ceramic boards
      Achieves dielectric strength of 2.5kV/min and enables reduction of materials and process hours while also achieving high withstand voltage
    • Available in a wide range of rated currents
      Offered in a total of 8 types of 75A, 100A, 150A, and 200A for both 800V and 1,600V, to allow selection of products best suited to device loads
    • Other features
      UL1557 certified product

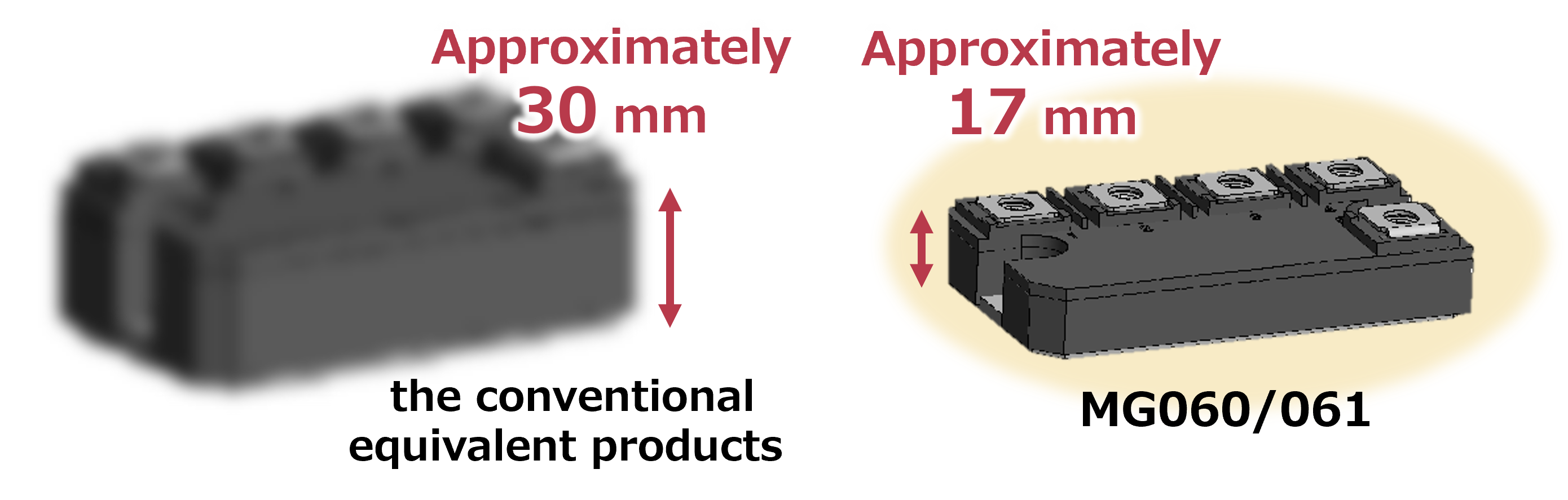

Fig.1 Utilizes a thin package

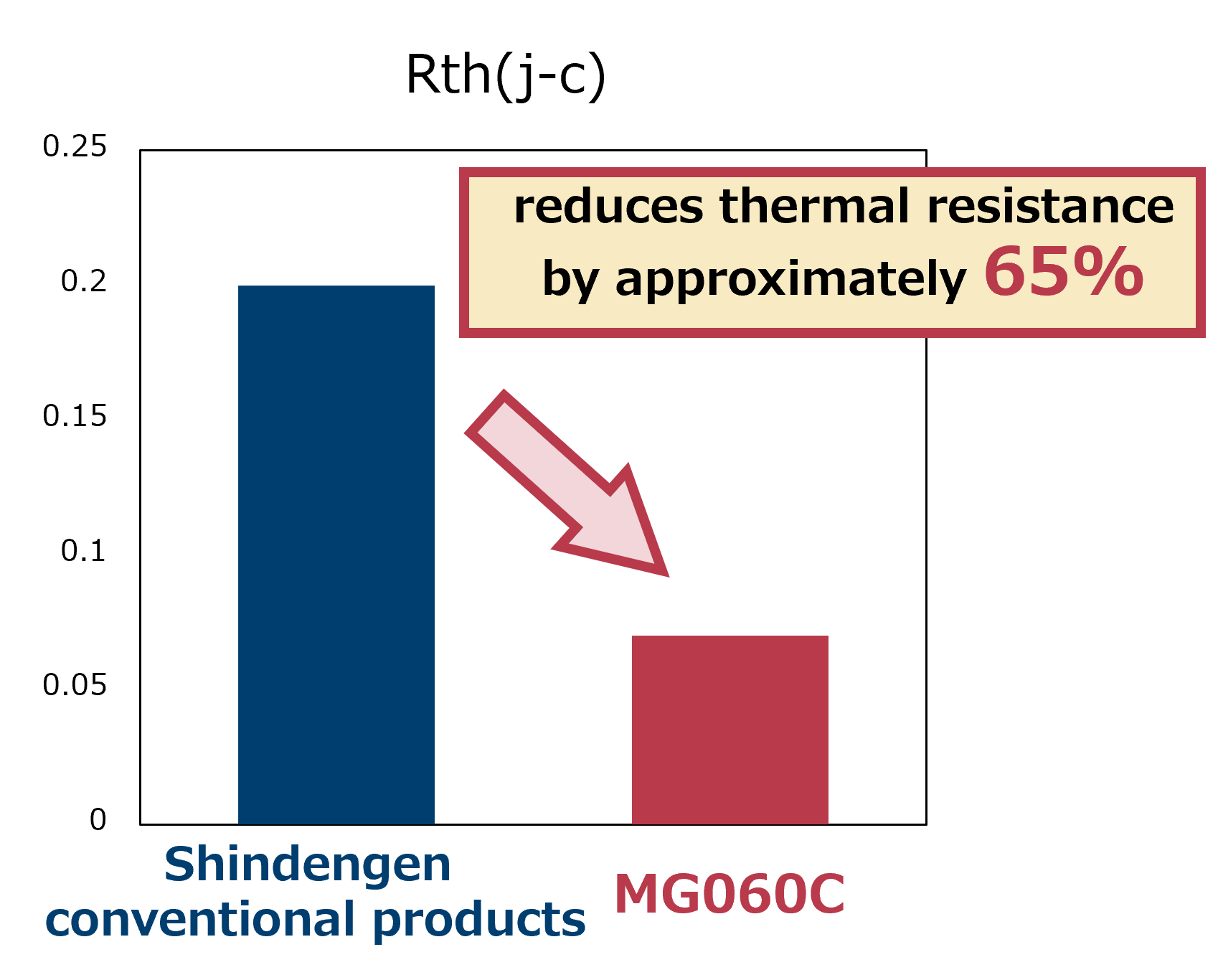

 Fig.2 Low thermal resistance

■ Typical Applications

・For converter circuits in industrial robot system commercial input systems
・For converter circuits of general-purpose inverters

■ Equivalent Circuit

■ External Dimensions

■ Specifications

Part Name IF [A] VF [V] VRRM [V] IFSM [A] Composition
MG060B 75 1.23 800 1050 Three phase
MG060C 100 1.27 800 1200 Three phase
MG061B 150 1.35 800 1700 Three phase
MG061C 200 1.40 800 2050 Three phase
MG060E 75 1.29 1600 900 Three phase
MG061D 100 1.33 1600 1150 Three phase
MG061E 150 1.40 1600 1600 Three phase
MG061F 200 1.45 1600 2000 Three phase

■ Factory location

Lumphun Shindengen Co., Ltd. (Thailand) etc.

■ Availability

May 2024

■ Contact information

Please note that the information contained in releases is current as of the date of press announcement, but may be subject to change without prior notice.
