- 400V input compatible, three phase input diode module launched ~Contributes to downsizing and improved reliability of industrial equipment for the Chinese and European markets~
New Product
400V input compatible, three phase input diode module launched
~Contributes to downsizing and improved reliability of industrial equipment for the Chinese and European markets~
Oct. 27, 2022
Shindengen Electric Manufacturing Co., Ltd. has launched the new MG038 Series diode modules for three phase AC input rectifying circuits in industrial equipment.
The 2 models added to the lineup are the MG038C and MG038D, which are 400V AC input voltage compatible converter diode modules.
The industrial robot market continues to grow with increasing demand for semiconductors used for automotive electronic components and other various applications. Up until now, Shindengen has developed and sold 800V diode modules.
We have added 1600V withstand voltage products to our lineup in response to growing needs for 400V input compatible products in China, Europe, and other regions.
This product uses the same low-profile package as the 800V products, which is effective for downsizing .
The products can also realize a shift to high breakdown voltage by achieving 1600A/2000A for IFSM as well. These features can contribute to downsizing and improved reliability for 400V input equipment.
Features
- Utilizes Shindengen's newly developed 1600V withstand voltage chip
Can be equipped on 400V input equipment for China, Europe, and other regions - Utilizes a thin package
Low-profile, 17 mm type package contributes to equipment downsizing - Reliability equal to or greater than competing products
Features a revised packaging design which improves IFSM making it superior to similar products from competitors
IFSM［A］ Compared to equivalent competitor products MG038C 2000 8% improvement MG038D 1600 33％ improvement - Use of industry standard external shape to allow for easy replacement
Terminal and mounting pitch have been designed with consideration for replacement of existing products - Other features
・Use of a ceramic board achieves high insulating capacity and high heat dissipation design
・UL1557 certified product
Typical Applications
- For converter circuits in industrial robot system commercial input systems
- For converter circuits of general-purpose inverters
Specifications
| type No. | VRRM ［V］ |
VF ［V］ |
IF(typ.) ［A］ |
IFSM ［A］ |
|
| MG038A200080A | 800 |
1.05 | 200 | 1950 | |
| MG038B150080A | 150 | 1650 | |||
| MG038C200160A NEW |
1600 |
200 | 2000 | ||
| MG038D150160A NEW | 150 | 1600 | |||
Equivalent Circuit

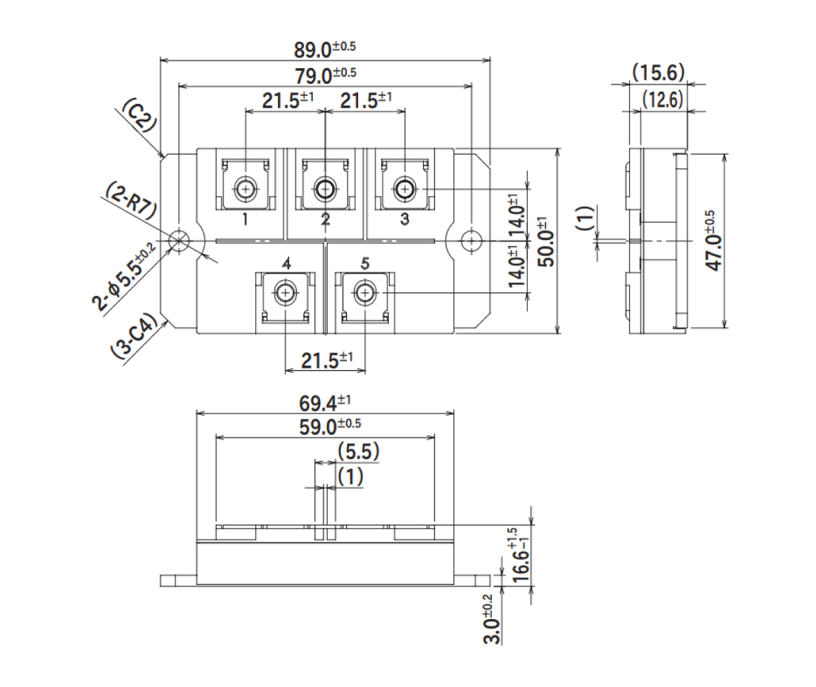

External Dimensions
Factory location
Lumphun Shindengen Co., Ltd. (Thailand) etc.
Contact information
Please note that the information contained in releases is current as of the date of press announcement, but may be subject to change without prior notice.
