Announcing the launch of the MCZ5211ST LLC Current Resonant Mode Controller IC for Bridge Converter with high frequency compatible 600V withstand voltage internal starter circuit

Jul. 26, 2018

Shindengen Electric Manufacturing Co., Ltd. (Headquartered in Otemachi, Chiyoda-ku) has begun offering the MCZ5211ST LLC current resonance control IC chip with a 600V withstand voltage internal starter circuit.

1.Overview

LLC current resonance circuits are used to achieve higher efficiency and lower noise in 100-500W output class power supplies.
The newly developed MCZ5211ST is an LLC current resonance control IC which features a high withstand voltage 600V starter circuit and low withstand voltage control circuit on a single chip, allowing for lower standby power without the need for an external starter circuit.
Our company's original control method (asymmetric control) provides the chip with an active standby function which improves power efficiency during light loads (of several W) and standby, which makes it possible to eliminate the need for the auxiliary power supplies required up until now. The chip also allows for the operating frequency to be increased up to 500kHz, contributes to power supply miniaturization, and is equipped with a variety of protection functions, making it possible to construct a power supply circuit with a small number of component parts.

2.Features

・LLC individual IC equipped with HV Startup (600V withstand voltage starter circuit)
・Compatible with higher frequencies - Capable of constant operation frequencies of 500 kHz
・Low standby power (built-in active standby function and burst function)
・Built-in overcurrent protection input voltage dependent correction function
・Control circuit power supply pin (Vc1) withstand voltage is 35V
・Package: SOP18
・Operation temperature range: -20 to 120°C

3.Typical Applications

・Power supplies for LBP and other document equipment
・Power supplies for audio equipment
・Power supplies for FPD
・Power supplies for LED lighting
・Power supplies for industrial equipment

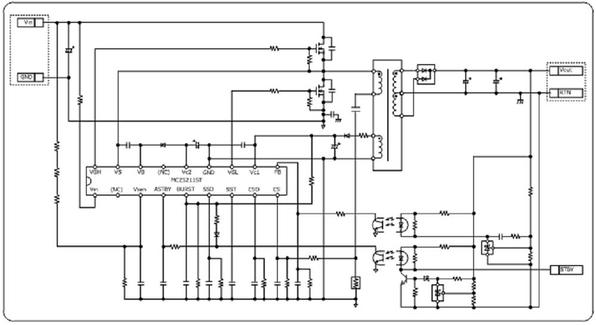

4.Diagram

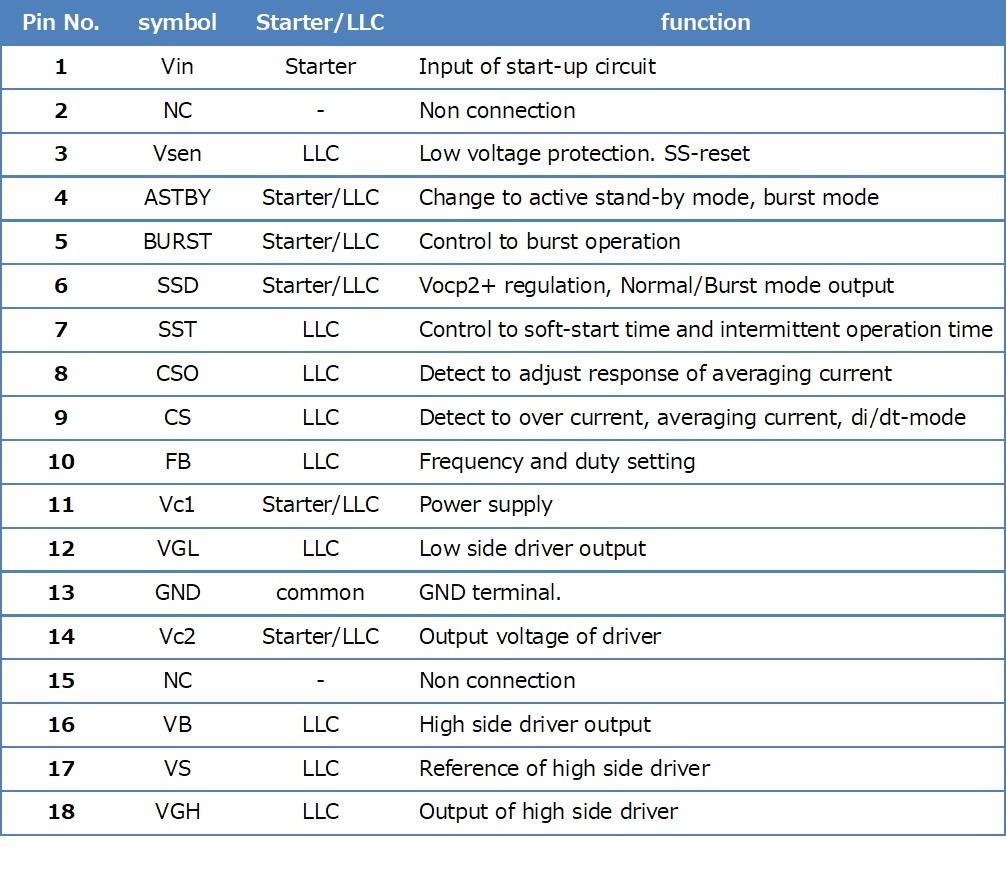

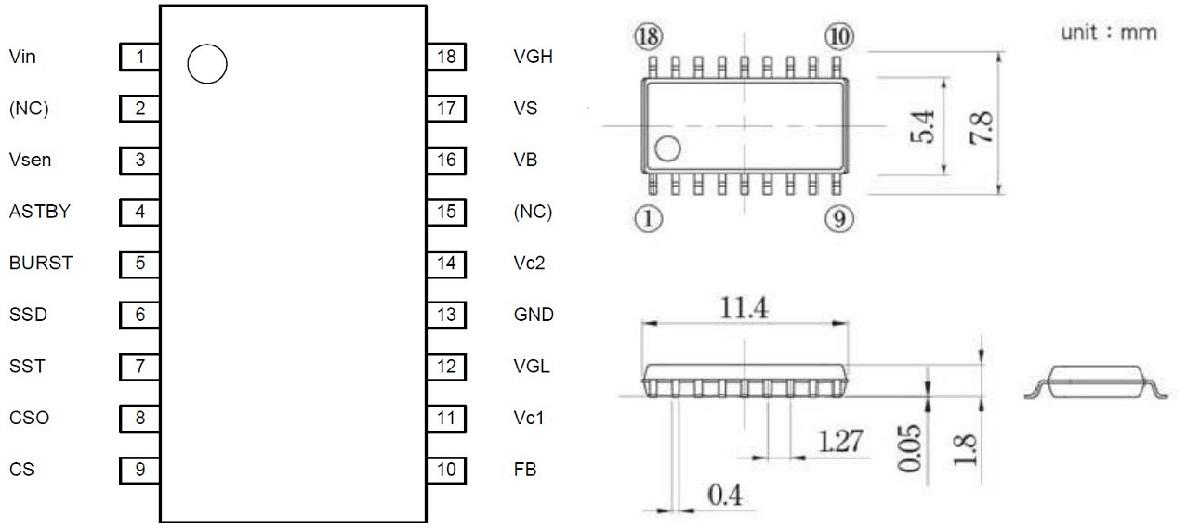

5.Pin Assignment and Exterior Diagram SOP18 Package

6.Factory Location

Higashine Shindengen Co., Ltd., etc.

7.Sample prices

Please contact us.
