Notice of expanded power zener (TVS) lineup (maximum operating voltage: 240 V→320 V)

Feb. 22, 2016

Shindengen Electric Manufacturing Co., Ltd. (head office: Ote-machi, Chiyoda-ku) has increased its lineup of high-voltage power zener (TVS) to a withstand voltage of 320 V in response to the increasing demand for higher voltages.

1. Outline

We have been introducing products to various markets in order to respond to their needs,
but recently there has been a significant increase in the use of electronics in automobiles and a need for higher withstand voltages in the circuits,
and this has led to an increased demand for high-voltage, highly reliable protective elements. We have now expanded the starting voltage (VBR) to 320 V for a power dissipation of 1 W (1F package) even in our surge-absorbing power zener diodes which have always been popular.

2. Features

• High reliability to meet the needs of the automotive market
• Based on automotive standard AEC-Q101 (planned to be certified)
• Junction temperature (Tj) guaranteed to 175°C
• Wide range of starting voltages(VBR)from 12 to 320 V

3. Product lineup

[Uni-directional type]

Product name	Absolute maximum rating				Electric characteristics
	PRSM [W]	Tstg [℃]	Tj [℃]	VRM [Vmax]	VBR [Vtyp]	IR [uAmax]
ST04-12F1	400	-55～175	175	9	12.5	5
ST04-14F1	400	-55～175	175	12.8	14	5
ST04-16F1	400	-55～175	175	13.6	16	5
ST04-18F1	400	-55～175	175	15.3	18	5
ST04-20F1	400	-55～175	175	16	20	5
ST04-24F1	400	-55～175	175	20	24	5
ST04-27F1	400	-55～175	175	23	27	5
ST04-30F1	400	-55～175	175	24	30	5
ST04-33F1	400	-55～175	175	25	33	5
ST04-36F1	400	-55～175	175	27	36	5
ST04-39F1	400	-55～175	175	30	39	5
ST03-43F1	300	-55～175	150	33	43	5
ST03-47F1	300	-55～175	150	37	47	5
ST03-58F1	300	-55～175	150	45	58	5
ST03-68F1	300	-55～175	150	58	68	5
ST02-75F1 New	200	-55～175	150	61	75	5
ST02-82F1 New	200	-55～175	150	67	82	5
ST02-100F1 New	200	-55～175	150	80	100	5
ST02-120F1 New	200	-55～175	150	100	120	5
ST02-140F1 New	200	-55～175	150	120	145	5
ST02-170F1 New	200	-55～175	150	145	170	5
ST02-200F1 New	200	-55～175	150	170	200	5
ST03-240F1	310	-55～175	150	200	240	5
ST02-280F1 New	200	-55～175	150	230	275	5
ST02-320F1 New	150	-55～175	175	260	325	5

[Bi-directional type]

Product name	Absolute maximum rating				Electric characteristics
	PRSM [W]	Tstg [℃]	Tj [℃]	VRM [Vmax]	VBR [Vtyp]	IR [uAmax]
DL04-18F1	400	-55～150	150	13	18	5
DL04-33F1	400	-55～175	175	25	33	5
DL04-36F1	400	-55～175	175	27	36	5

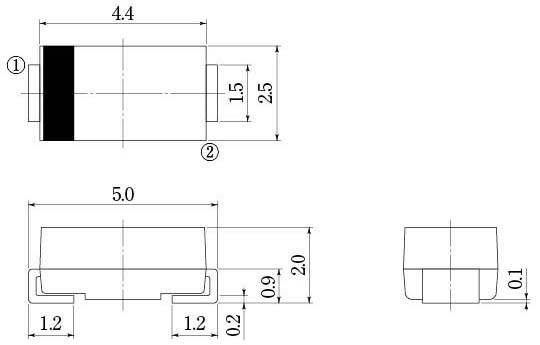

4. Outline drawing (1F package)

Unit: mm

5. Sample price

80 JPY

6. Production factory

Akita Shindengen Co., Ltd, etc.

7. Contact information

Shindengen Electric Manufacturing Co., Ltd.
Sales Div. Group Marketing & Sales Department
TEL +81-3-3279-4687
FAX +81-3-3279-4537

* The above information is correct as of 12 February 2016.
