V-Diode™

MF2003SV・MF2013SV

  • WSON8

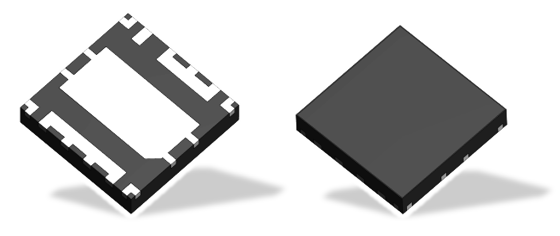

    WSON8

Features

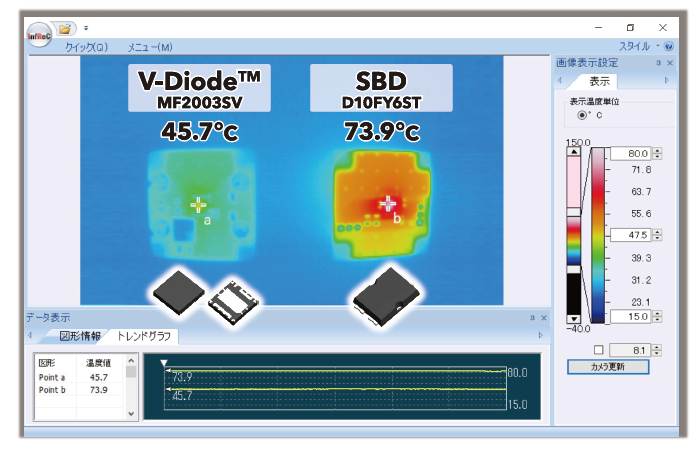

①Heat Generation Reduction by 37%
Heat generation was 37% less when using a V-Diode than when using conventional SBD.

  • Heat Generation Reduction by 37%

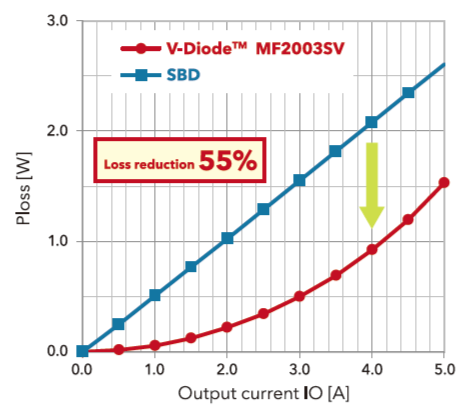

②Loss Reduction by 55%
Losses were 55% lower when using V-Diodes than when using conventional SBD.

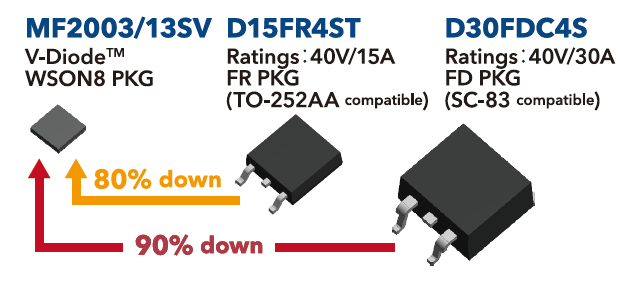

③Compact Package
Wettable flank plated leadless package. Mounting area is reduced by 90% compared to conventional SBD.

MF2008SW

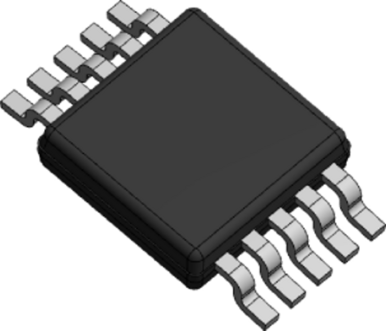

  • tssop10
    TSSOP10

Features

①Wide Input Voltage Range
Range of input voltages from 4.5 to 65V

②Switch to Ideal Diode and Semiconductor Relay
This V-diode can be used as a bidirectional semiconductor relay, with Nch MOSFET of back-to-back connection. It can achieve high speed ON/OFF, low loss, and downsizing compared to mechanical relay. The reverse current blocking function can be switched ON and OFF via the REV terminal Hi/Lo status.

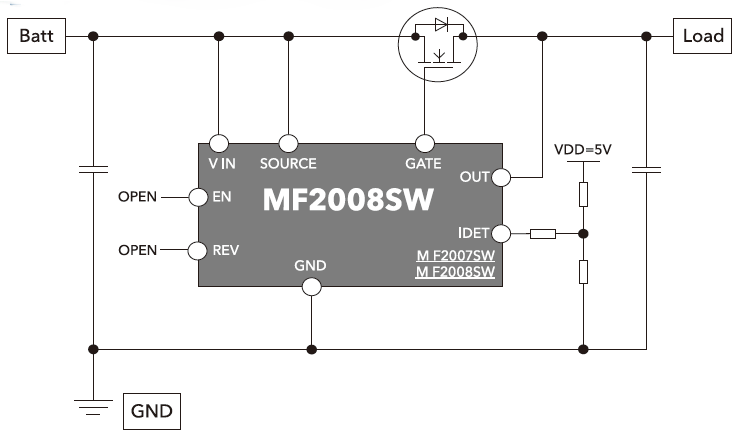

■Ideal Diode Type

  • Ideal Diode Type

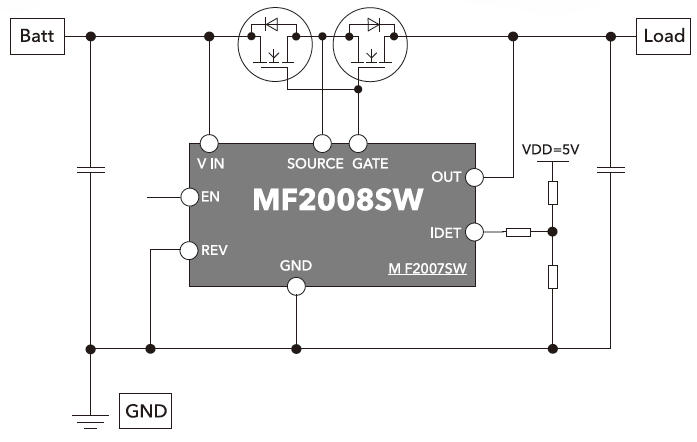

■Semiconductor Relay Type

  • Semiconductor Relay Type

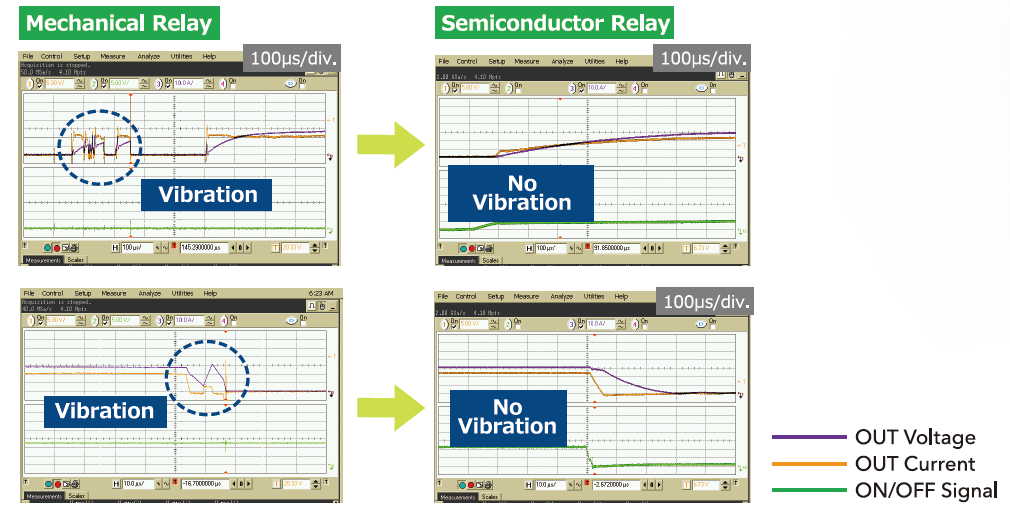

■Vibration

Mechanical vs Semiconductor Relay

  • Vibration

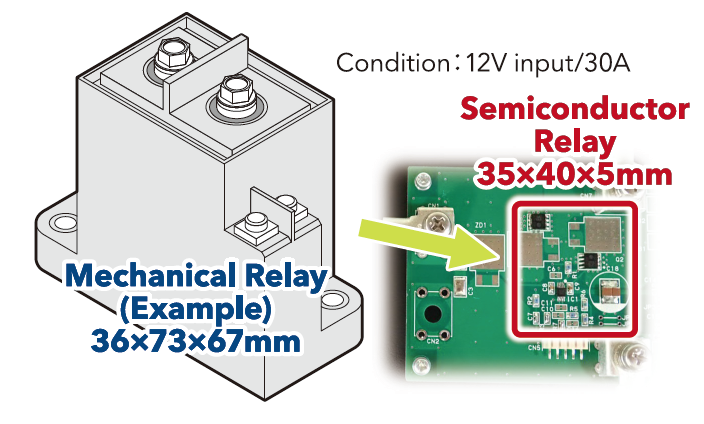

■Mounting Size

  • Mounting Size
