MOSFET
EETMOS 6 TOLL PKG
Features
①Highest Current Capability

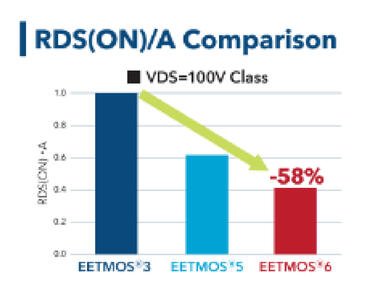

250A and higher current devices. Contributing to device downsizing and increased efficiency through low RDS(ON).

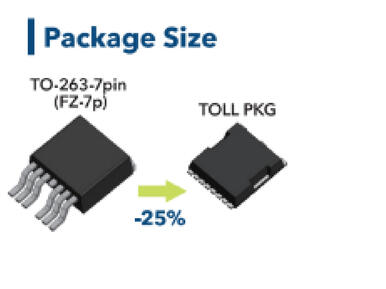

②Board Mounting Space Reduced by 25%
*compared to D2PAK(TO-263).
③TOLL MOSFET Are Used in Our PCU
Shindengen can combine our own long expertise in Semiconductor/Mounting/Circuit, that can create the best solutions to you.

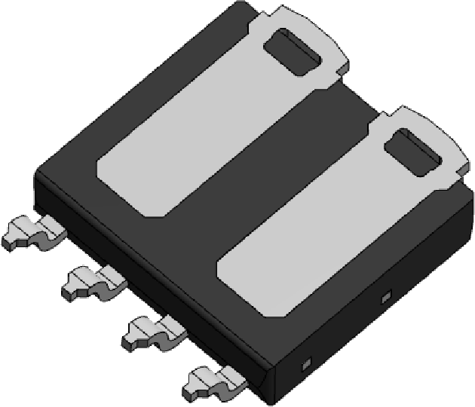

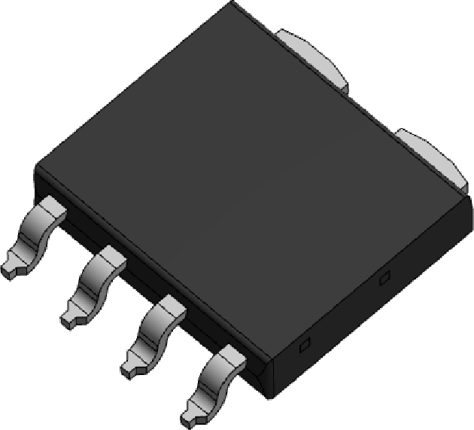

EETMOS 6 LF PKG
Features

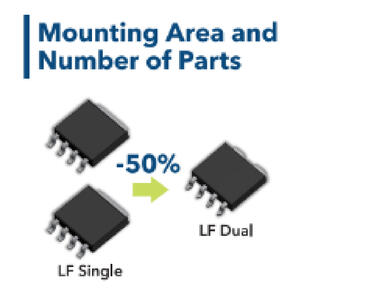

①Reduced Number of Partds and Mounting Area
Two low-loss power MOSFETs are mounted in one package.
5×6 mm size package(Can replace SOP8 and HSON types)
②High Reliability in Soldering

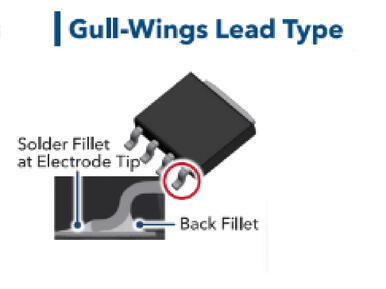

Gull-Wings lead type make it possible to relieve mechanical stress onto PCB.
The lead tips are Au-coated to increase reliability in soldering.

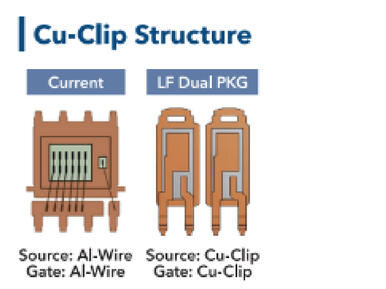

③Lowest RDS(ON) by Cu-Clip Structure
Cu-Clip structure can reduse the resistance and improve heat dissipation, which leads to lower RDS(ON) and High Current(～180A).
