Power Control Unit
It provides a smoother ride and longer range by reflecting the quality and innovation of Japanese engineering.
It makes your exploration towards EV more comfortable and confident.
Specification
| PCU Line up |
Target EV capacity |
2kWpk (Typ1.2kW) |
6kWpk (Typ3.6kW) |
8kWpk (Typ4.8kW) |
|---|---|---|---|---|
| Ratings | Input operation voltage |
High 30V-60V / Low 8V-16V |
||
| Output max phase current ※Air cooling |
Start:140Apk |
Start:230Apk |
Start:320Apk |
|
| Size |
Size (W*L*H mm)
※Excluding mounting part and connector
|
115*108*40 |
133*168*47 |
164 * 210 * 45 |
| Weight (kg) |
0.84 |
1.6 |
2.7 |
|
| Motor | Motor type |
3 phase synchronous motor |
||

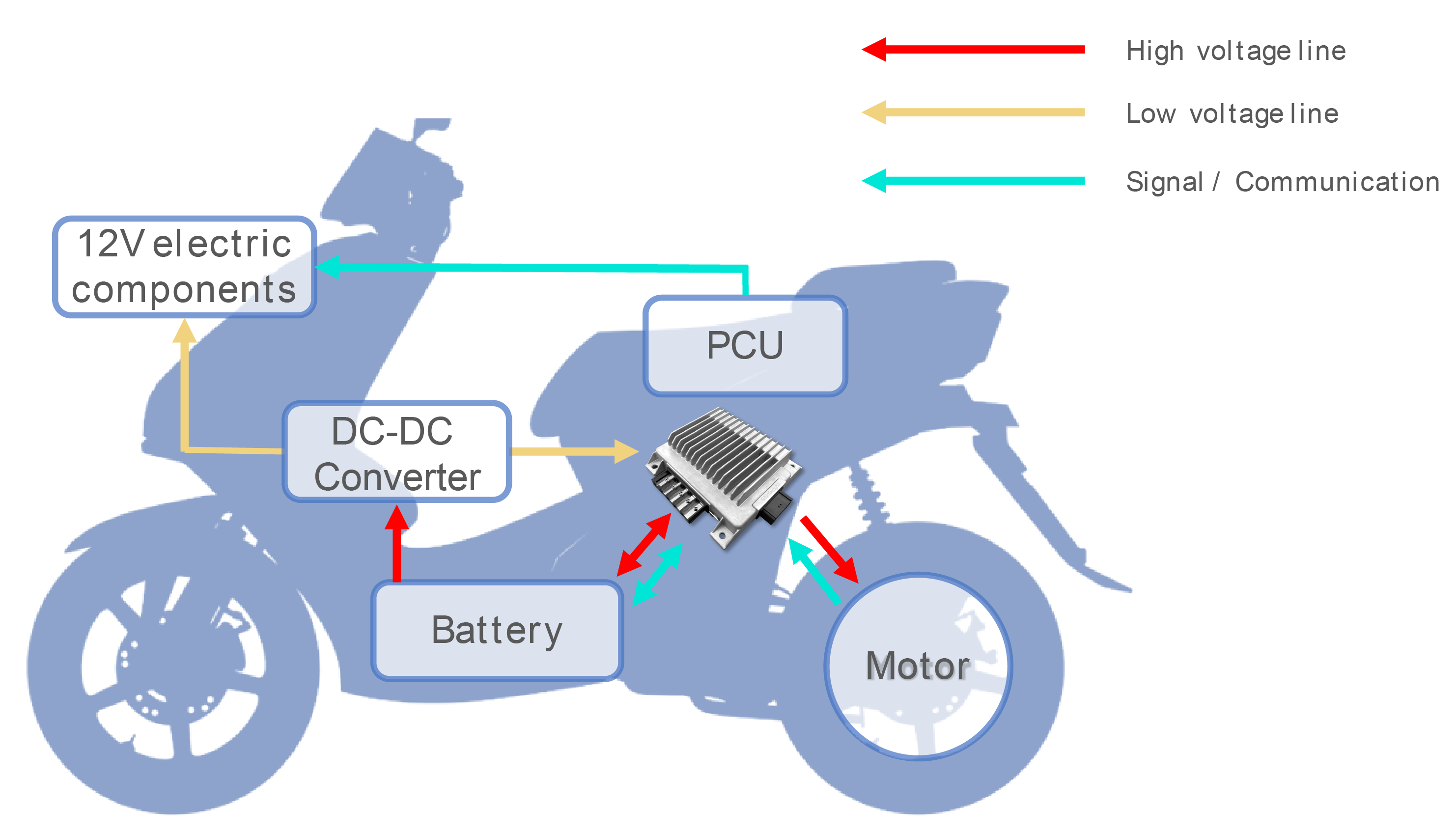

System overview
Features
✓High Efficiency
Power supply technology cultivated for more than half a century extends the range of your vehicle operation.
✓Drivability
Real-time detection of vehicle condition helps in smooth vehicle operation.
✓Make in India
Our products are mass produceable in our Bangalore factory.
