New DC-DC Converter

By leveraging technology cultivated over many years with motorcycle and automobile products,
Shindengen is developing highly efficient and reliable non-isolation DC-DC converters.

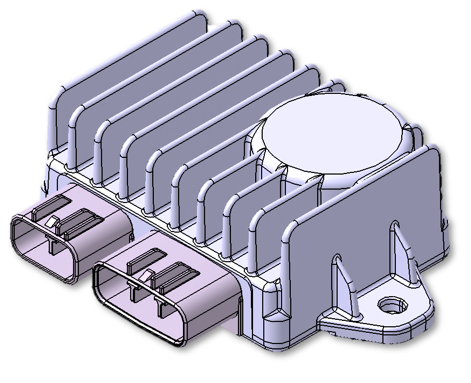

  • 250W DC-DC Converter

Specification

DC-DC Converter Line up

250W

Input Voltage

48V

Output Voltage

14.4V

Output Current

17A

Efficiency (max)

92%

Operating temp.

 -20 to 60deg C

Size (W*L*H)

135*70*40mm

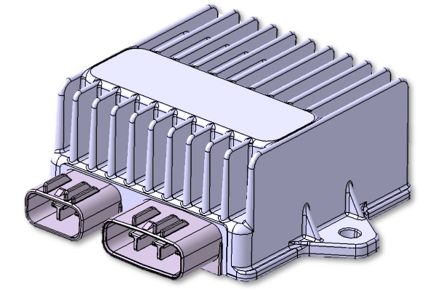

  • 500W DC-DC Converter

Specification

DC-DC Converter Line up

500W

Input Voltage

48V

Output Voltage

14.4V

Output Current

35A

Efficiency (max)

92％

Operating temp.

 -20 to 60deg C

Size (W*L*H)

135*95*47mm

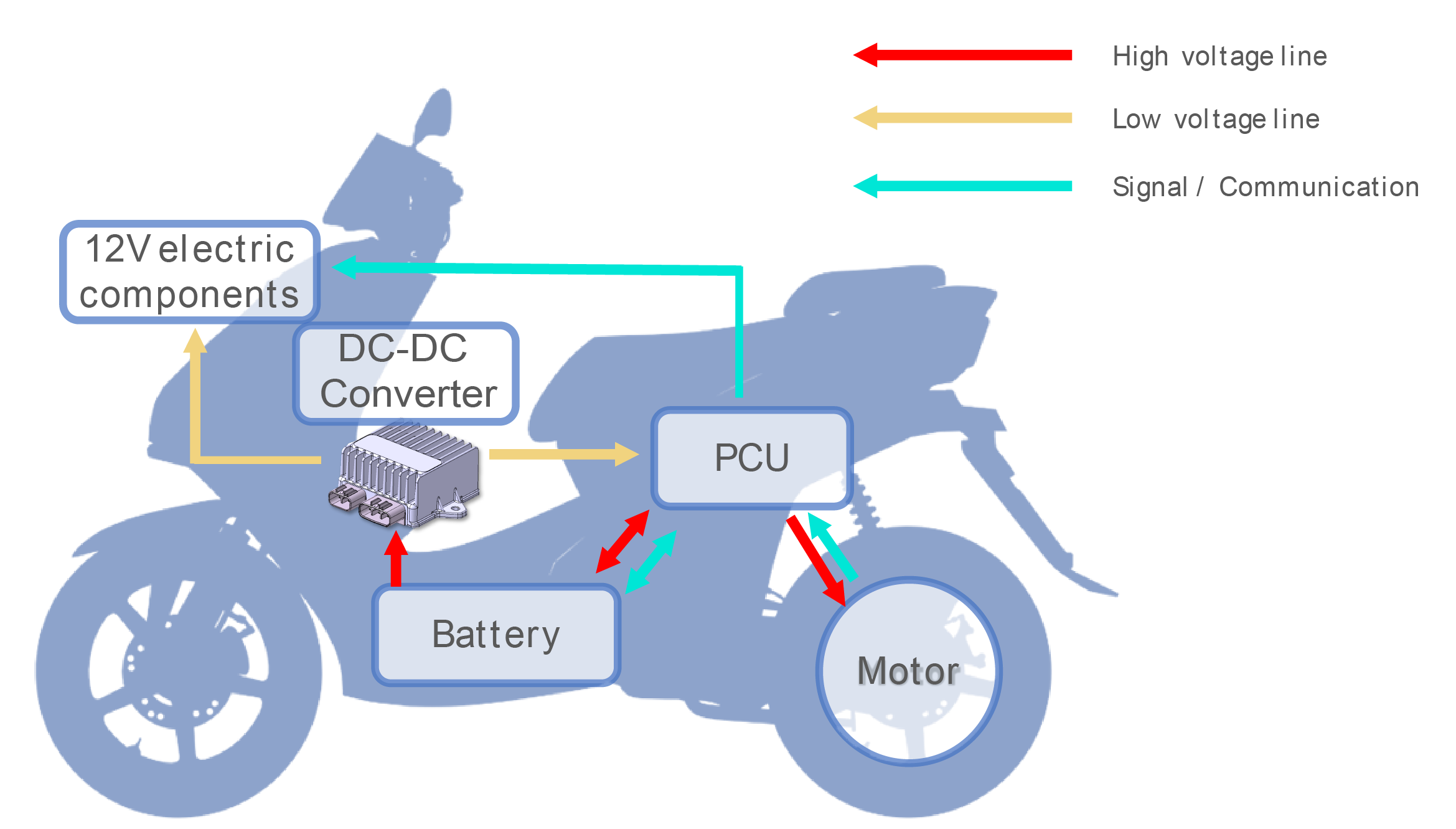

System Overview

Features

✓Resistance
 Shindengen‘s DC-DC converters has high resistance against vibration, and it could resist 20G.

✓GaN Device
 By equipping GaN device, our DC-DC converter archives higher efficiency and 35% downsizing.

✓IP67 Equivalent
 Our products obtain IP67 and guarantees “dust & waterproof”.
