MOS-FETs

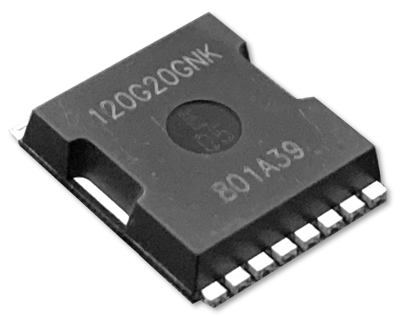

TOLL Package Product
Large current 100V/200V power MOSFET LG(TOLL) package.
-
-
- Size 11.70*9.80(mm)
-
Specification
|
Part Name |
VDS(min)[V] |
ID(max)[A] |
VTH(typ)[V] |
Ron[mΩ] |
Ciss VDS=25V |
Coss VDS=25V |
Crss VDS=25V | |
|---|---|---|---|---|---|---|---|---|
|
(typ) |
(max) | |||||||
|
P300LG10RMK |
100 |
300 |
3.0 |
1.38 |
1.73 |
TBD |
TBD |
TBD |
|
P166LG15GNK |
150 |
166 |
3.0 |
3.56 |
4.45 |
TBD | TBD | TBD |
|
P120LG20GNK |
200 |
120 |
3.0 |
7.5 |
9.4 |
6619 |
451 |
19 |
Features
✓New structure
Tch 175degC, Small & Thin PKG for Automotive
Tch 175degC, Small & Thin PKG for Automotive
✓High efficiency
Large Current capability and low on resistance
Large Current capability and low on resistance
✓Saving area
Board mounting space reduced by 25% as below compared to previous version
Board mounting space reduced by 25% as below compared to previous version
LF Package Product
40~200V Small size LF package Nch/Pch.
-
-
- Size 6.05*5.00(mm)
-
Specification
|
Part Name |
VDS(min)[V] |
ID(max)[A] |
VTH(typ)[V] |
Ron[mΩ] |
Ciss VDS=25V |
Coss VDS=25V |
Crss VDS=25V | |
|---|---|---|---|---|---|---|---|---|
|
(typ) |
(max) | |||||||
|
P180LF4RNK |
40 |
180 |
3.0 |
0.72 |
0.90 |
6064 |
1847 |
158 |
|
P120LF6RNK |
60 |
120 |
3.0 |
1.14 |
1.43 |
5258 | 2193 | 100 |
|
P96LF4PQLK |
-40 |
-96 |
-2.0 |
3.1 |
3.9 |
5413 |
802 |
459 |
|
P63LF6PQLK |
-60 |
-63 |
2.0 |
6.8 |
8.5 |
5515 |
561 |
321 |
Features
✓New structure
By having Gull-Wings lead in one side,mechanical stress onto PCB is relieved
By having Gull-Wings lead in one side,mechanical stress onto PCB is relieved
✓Large current
By adopting Cu-Clip, Lower Rdson, High Current（～180A）
By adopting Cu-Clip, Lower Rdson, High Current（～180A）
✓For Automotive
Tch=175℃ PKG Low noise
Tch=175℃ PKG Low noise
